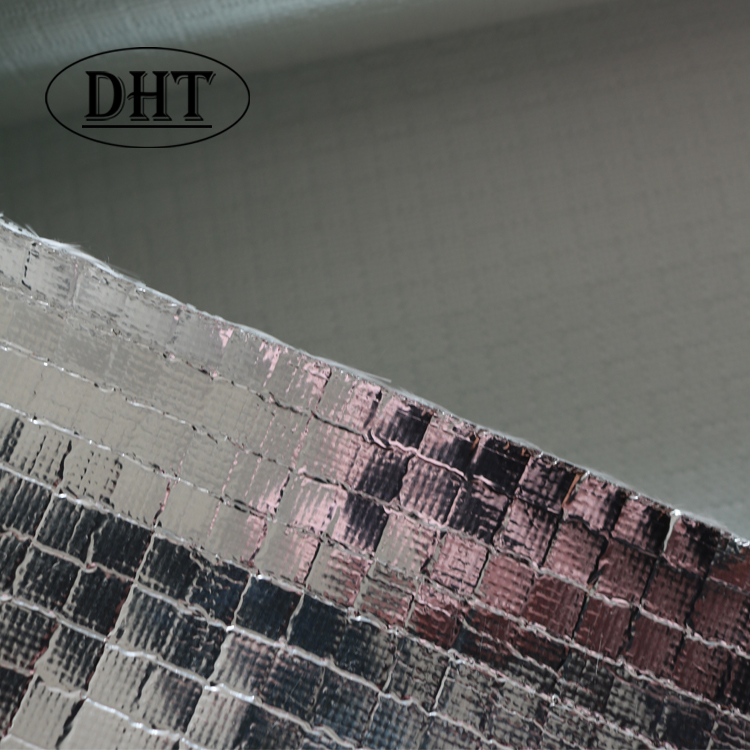

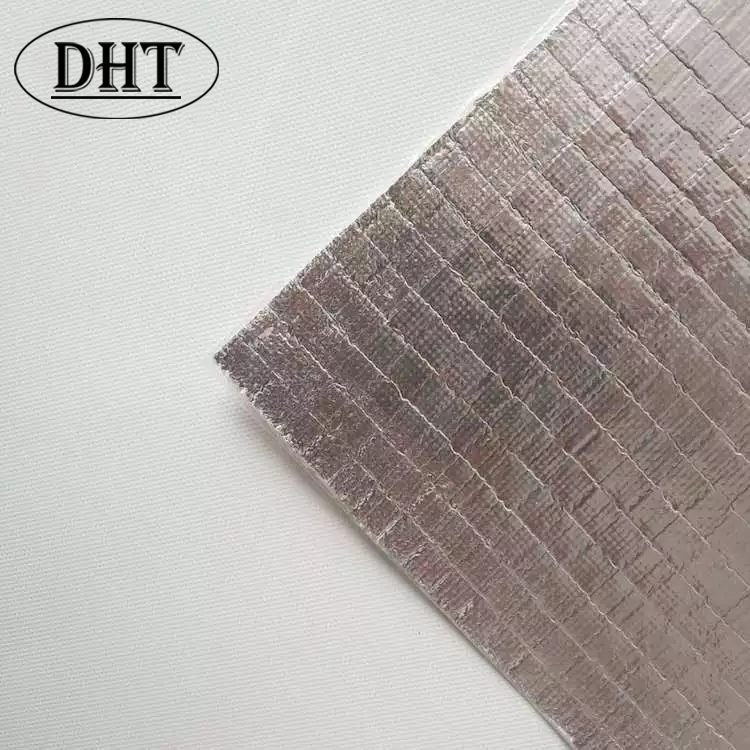

Hose Silver Heat Resistant Fabric / Aluminum Foil Fiberglass Composite Fabric
Description:
Aluminum foil coating is best for static applications and temperatures up to 650°F / 343°C, this fabric will withstand short duration exposure up to 1115°F / 600°C and up to 3000°F / 1650°C for very short durations. The aluminum coating melts at 1220°F / 660°C.
Aluminum foil fiberglass composite fabric reflects 95% or more of the radiant heat that contacts its surface. Constructed from a high-temperature base fiberglass which is then coated with aluminum foil or aluminum film.
Fiberglass fabric coated with aluminium foil has excellent properties such as smooth surface on the aluminum foil, strong light reflection, good stretching resistance in length and breadth, non-breath ability, non-water permeability, good hermetic and weather resistance.
Aluminum foil fiberglass composite fabric reflects radiant heat and is the perfect protection for covering equipment that is in close proximity to intense radiant sources such as super-hot metal slabs, liquid and molten metals or glass, open flame/plasma or engine exhaust manifolds. Protects industrial wire, cable, hose, hydraulics and equipment cabinets and enclosures.
Temperature resistant:
Fiberglass fabric: ≤550℃
Adhesive: ≤300℃
Aluminium foil: ≤300℃
Data sheet Of Basic Fabric:
Type | C-glass/E-glass | |
Item No. | UPCAL-8732 | |
Thickness | 0.45mm | 0.032inch |
Weight | 450g/m2 | 15oz/yd2 |
Yarn weft/warp | ECG37 1/4,ECG37 1/5 | ECG37 1/4,ECG37 1/5 |
Construction weft/warp | 8/6 ends/cm | 8/6 ends/cm |
Temperature resistant | ≤500℃ | ≤932℉ |
Tensile strength | 2600/2400(N/50mm) | |
