4x4 Mesh Size Conveyor Belt PTFE Coated Fiberglass Fabric Heat Resistant for Printing Machines
Dinghao Technology manufactures various of belts with its material of smooth ptfe fabric,ptfe mesh, kevla, silicon rubber etc to custom specifications, depending on each customer’s individual needs.
PTFE mesh UV dryer conveyor belt

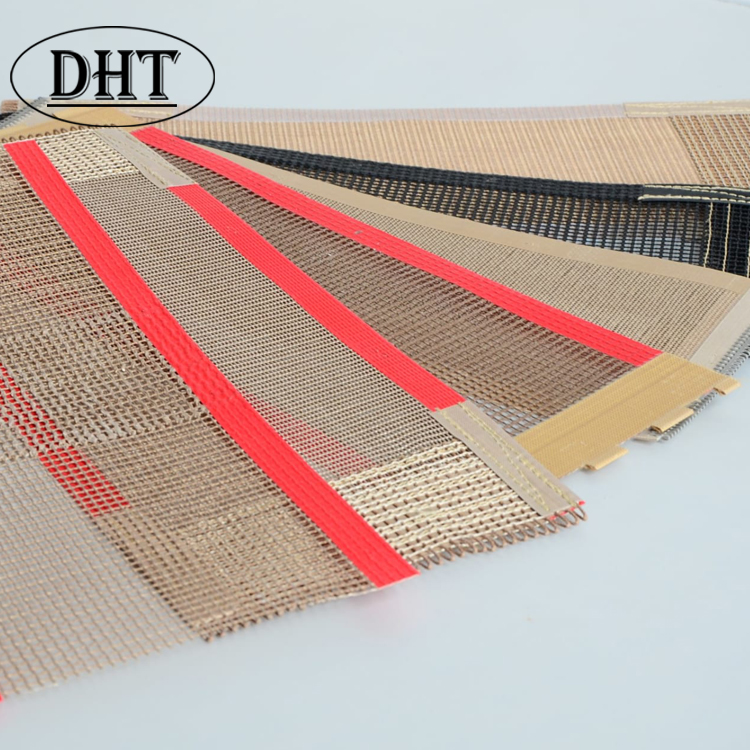

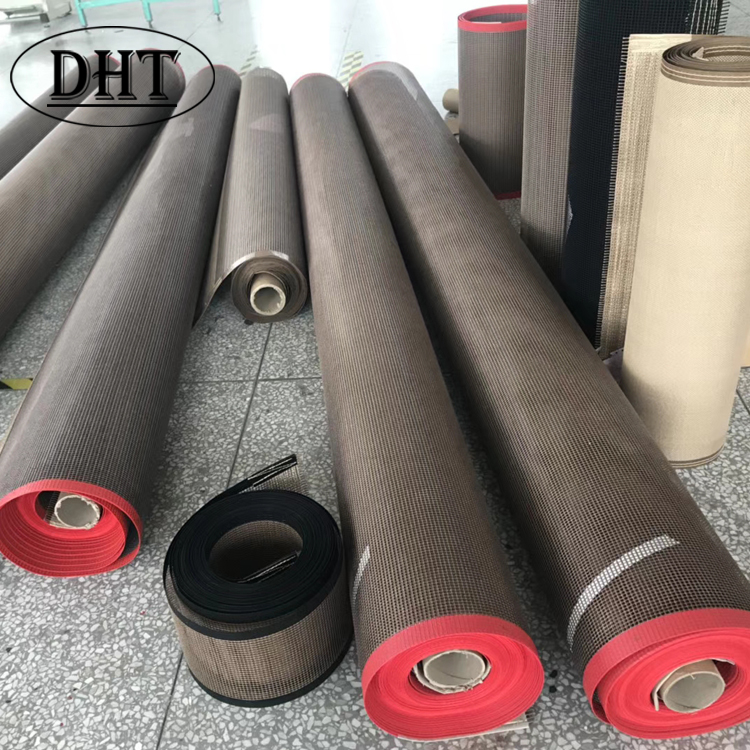

PTFE coated fiberglass open mesh belt select fine fiberglass, Kevlar or Nomex as basic weaving material, coated with excellent PTFE resin to make it into various of PTFE conveyor belt.
PTFE coated fiberglass mesh UV dryer conveyor belt Usage:
PTFE open mesh belts are used in screen printing to transport imprinted materials through drying ovens and cooling chambers. These belts are long lasting and perform well over a wide range of operating temperatures.
Fiber PTFE belt fabrication department can supply a wide variety of splices and edge reinforcements in order to respond customer’s specific applications.
Thickness (mm) | Breaking Strength (N/50mm) | Bursting Strength (Mpa) | Combustible | Max Width (mm) |
0.15 | 1500/1200 | 2.0 | ≤25% | 1500 |
0.25 | 1800/1500 | 2.1 | ≤25% | 1500 |
0.40 | 2000/1600 | 2.2 | ≤25% | 3000 |
0.50 | 2200/1800 | 2.3 | ≤25% | 4000 |
0.60 | 2400/2200 | 2.4 | ≤25% | 4000 |
0.70 | 2500/2300 | 2.4 | ≤25% | 4000 |
0.80 | 2600/2400 | 2.5 | ≤25% | 4000 |
How to Choose the Right Material
There are a number of factors to keep in mind when choosing the belting material for your application:
1) Temperature Range – Our ptfe fabrics have the capabilities of withstanding -70°C- +260°C constant operating temperatures.
2) Pliability – If the material is to track around pulleys that drive the belt, the diameter of the pulley is critical.
3) Strength – Options to be considered are breaking, tensile and tear strength. How much of a load the belt
